ECU Pinout MG7.9.8 Bench / Boot / GPT Pinout — Wiring Diagram

Step-by-step bench connection diagram for ECU MG7.9.8 (non-invasive Platform Bench & Boot Mode): T30/T15 power supply, twisted-pair CAN-H/CAN-L, and GPT0/GPT1 signal pinout.

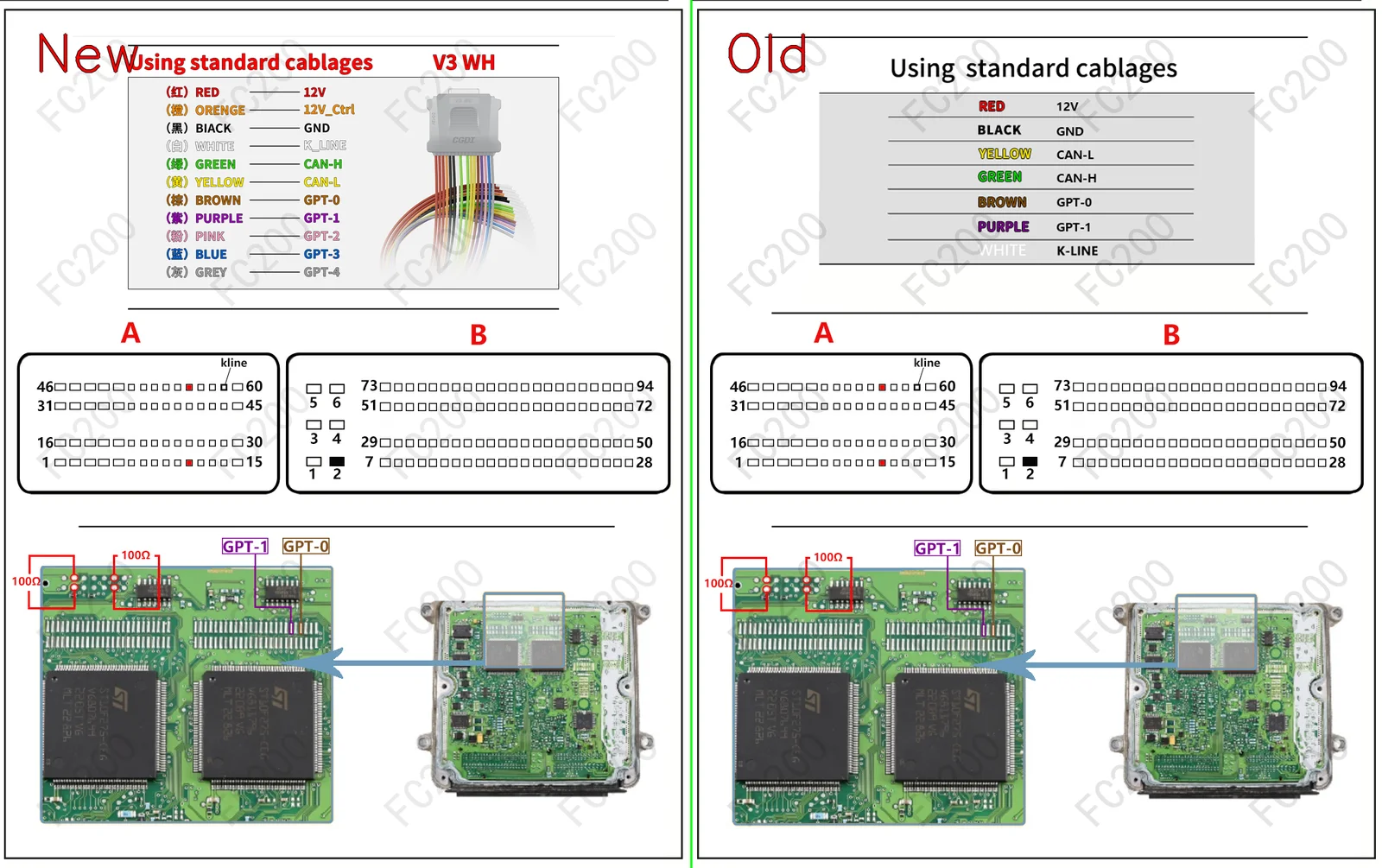

OFFICIAL PINOUT DIAGRAM: BOSCH MG7.9.8.png (Platform / Bench)1,749,213 bytes
BOSCH MG7.9.8.png
STEP-BY-STEP BENCH CONNECTION PROCEDURE (HOWTO PROTOCOL)BENCH / BOOT
  1. Step 1 (Terminal 30 & Terminal 15 Power): Apply regulated bench power 13.5V — 13.8V to constant battery (T30), switched ignition (T15), and ground (GND) pins according to the harness color code above.
  2. Step 2 (CAN Bus & GPT0 / GPT1 Signals): Connect CAN-H & CAN-L, along with signal leads GPT0 (S1) & GPT1 (S2) to enter bench service mode without opening the ECU housing.
  3. Step 3 (Full PFLASH + DFLASH Backup Read): Before writing any calibration, read and archive a full backup of internal Program Flash (PFLASH) and Data Flash / EEPROM (DFLASH).
VEHICLES EQUIPPED WITH ECU MG7.9.8 (16)VEHICLE COMPATIBILITY
MakeModel & EngineECU & MCUAction
Hyundai Accent(RB) (1.6 16v) BOSCH MG7.9.8 (ST10F275) Open Vehicle →
Hyundai Avante(MD) (1.6 16v) BOSCH MG7.9.8 (ST10F275) Open Vehicle →
Hyundai Elantra(MD) (1.6 16v) BOSCH MG7.9.8 (ST10F275) Open Vehicle →
Hyundai I30(GD) (1.6 16v) BOSCH MG7.9.8 (ST10F275) Open Vehicle →
Hyundai Ix20(JC) (1.4 16v) BOSCH MG7.9.8 (ST10F275) Open Vehicle →
Hyundai I20(GB) (1.6 16v) BOSCH MG7.9.8 (ST10F275) Open Vehicle →
Hyundai Getz (1.6 16v) BOSCH MG7.9.8 (ST10F275) Open Vehicle →
Kia Carens(III) (1.6 16v CVVT) BOSCH MG7.9.8 (ST10F275) Open Vehicle →
Kia Venga(I) (1.6 16v CVVT) BOSCH MG7.9.8 (ST10F275) Open Vehicle →
Kia Soul (1.6 16v CVVT) BOSCH MG7.9.8 (ST10F275) Open Vehicle →
Kia Rio (1.6 16v CVVT) BOSCH MG7.9.8 (ST10F275) Open Vehicle →
Kia Ceed (1.6 16v CVVT) BOSCH MG7.9.8 (ST10F275) Open Vehicle →
Kia Cerato (1.6 16v CVVT) BOSCH MG7.9.8 (ST10F275) Open Vehicle →
Bosch ST10 Boot Mode Klassicheskie ECU na protsessorakh ST10F275 / C167 (Bosch ME7 / M7.9.7 Boot) (Direct Bench / Boot ECU Connector Pinout) BOSCH MG7.9.8 (ST10F275) Open Vehicle →
Hyundai All Brand Models (Direct ECU Label Lookup) (Read/WriteEEPROM/FLASH, Recover VIN) BOSCH MG7.9.8 (ST10F275) Open Vehicle →
Kia All Brand Models (Direct ECU Label Lookup) (Read/WriteEEPROM/FLASH, Recover VIN) BOSCH MG7.9.8 (ST10F275) Open Vehicle →
