ECU Pinout MPC5553 Bench / Boot / GPT Pinout — Wiring Diagram

Step-by-step bench connection diagram for ECU MPC5553 (non-invasive Platform Bench & Boot Mode): T30/T15 power supply, twisted-pair CAN-H/CAN-L, and GPT0/GPT1 signal pinout.

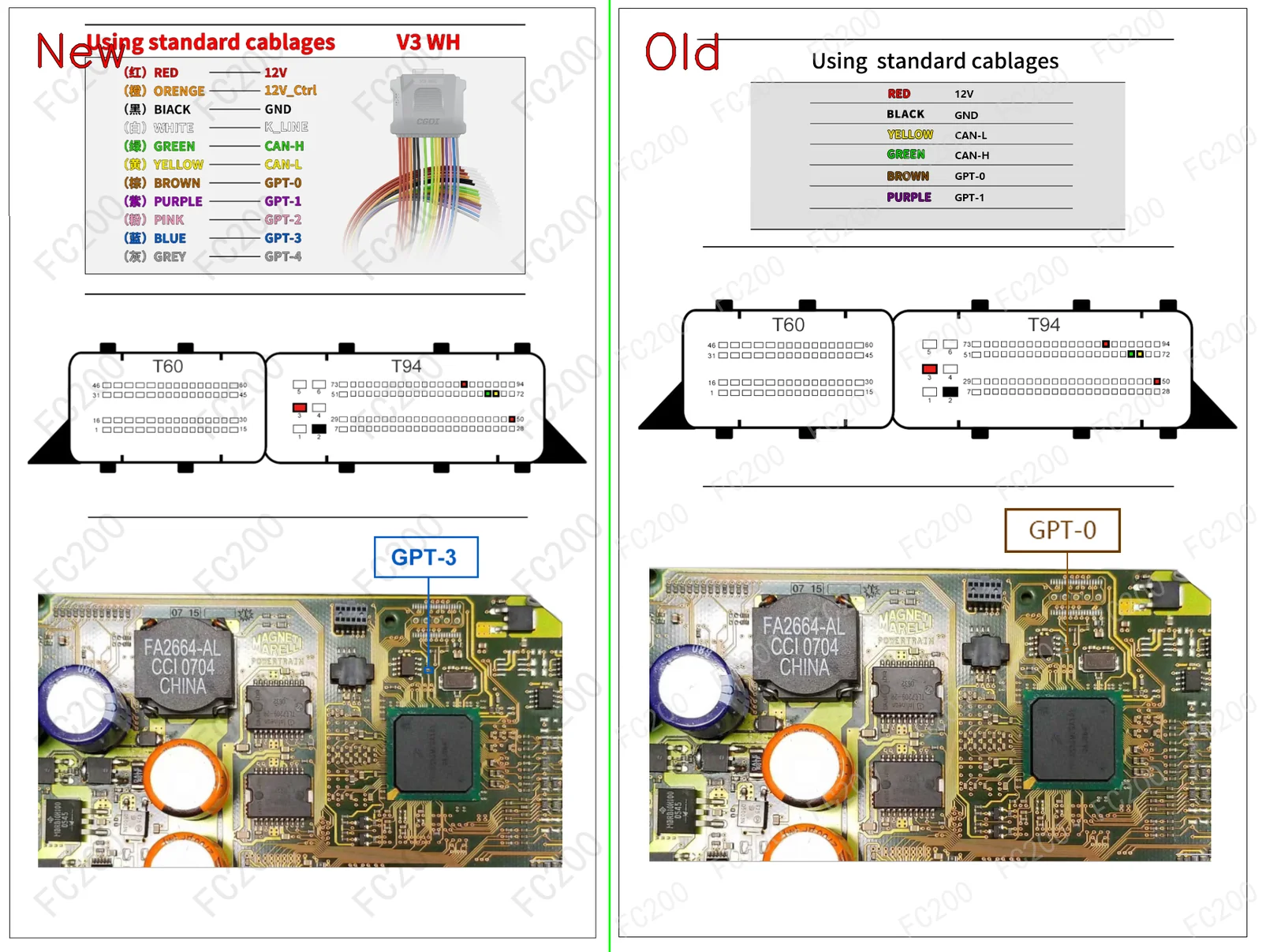

OFFICIAL PINOUT DIAGRAM: BOOT_MARELLI 8F3 MPC5553.png (Boot)2,154,116 bytes
BOOT_MARELLI 8F3 MPC5553.png

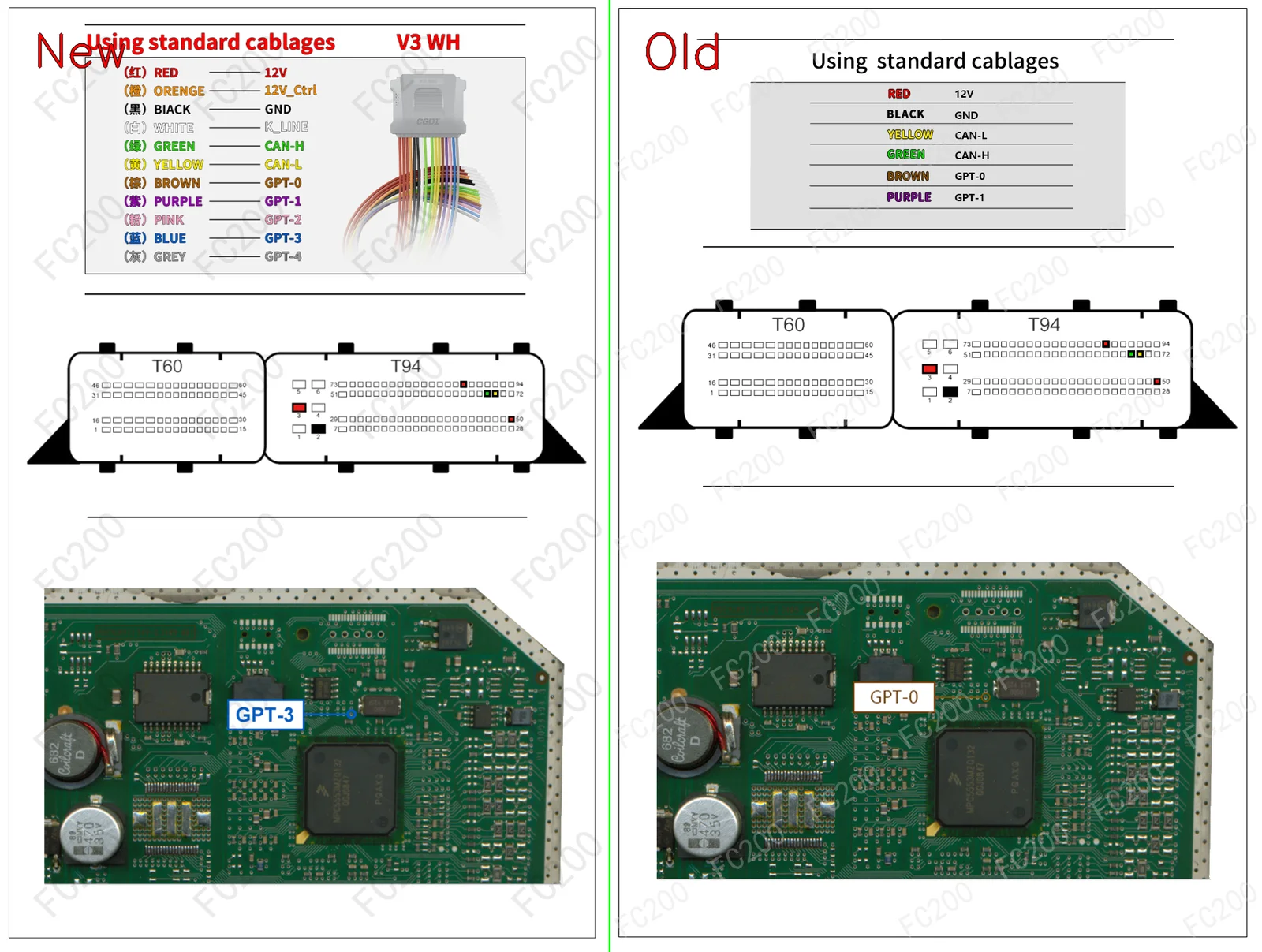

OFFICIAL PINOUT DIAGRAM: BOOT_MARELLI 8GMF MPC5553.png (Boot)2,001,322 bytes
BOOT_MARELLI 8GMF MPC5553.png
STEP-BY-STEP BENCH CONNECTION PROCEDURE (HOWTO PROTOCOL)BENCH / BOOT
  1. Step 1 (Terminal 30 & Terminal 15 Power): Apply regulated bench power 13.5V — 13.8V to constant battery (T30), switched ignition (T15), and ground (GND) pins according to the harness color code above.
  2. Step 2 (CAN Bus & GPT0 / GPT1 Signals): Connect CAN-H & CAN-L, along with signal leads GPT0 (S1) & GPT1 (S2) to enter bench service mode without opening the ECU housing.
  3. Step 3 (Full PFLASH + DFLASH Backup Read): Before writing any calibration, read and archive a full backup of internal Program Flash (PFLASH) and Data Flash / EEPROM (DFLASH).
VEHICLES EQUIPPED WITH ECU MPC5553 (22)VEHICLE COMPATIBILITY
MakeModel & EngineECU & MCUAction
Alfa Romeo 4C(960) (1742 960 A1.000 240) MARELLI 8TDF MPC5553 (test) Open Vehicle →
Alfa Romeo Giulietta(940) (1598 940 C1.000 120) MARELLI 8TDF MPC5553 (test) Open Vehicle →
Alfa Romeo MiTo(955) (1400 MultiAir 955.A6.000 105) MARELLI 8GMF MPC5553 (test) Open Vehicle →
Alfa Romeo MiTo(955) (1400 MultiAir Turbo 940.A2.000 170) MARELLI 8GMF MPC5553 (test) Open Vehicle →
Alfa Romeo Mito (1368 955.A2.000 137) MARELLI 8GMF MPC5553 (test) Open Vehicle →
Fiat Punto Evo(199) (1400 MultiAir 955.A6.000 105) MARELLI 8GMF MPC5553 (test) Open Vehicle →
Fiat Linea- (1248 199B4000 95) MARELLI 8F3 MPC5553 (test) Open Vehicle →
Lancia Musa (1248 69) MARELLI 8DF MPC5553 (test) Open Vehicle →
Lancia Musa (1300 Multijet • 90) MARELLI 8DF MPC5553 (test) Open Vehicle →
Lancia Musa (1300 Multijet • 70) MARELLI 8DF MPC5553 (test) Open Vehicle →
Lancia Musa (1248 90) MARELLI 8DF MPC5553 (test) Open Vehicle →
Lancia Musa (1248 95) MARELLI 8DF MPC5553 (test) Open Vehicle →
Lancia Musa (1300 Multijet • 95) MARELLI 8DF MPC5553 (test) Open Vehicle →
Alfa Romeo All Brand Models (Direct ECU Label Lookup) (Read/Write PFLASH/ExtEEPROM, CheckSum) MARELLI 8TDF MPC5553 (test) Open Vehicle →
Alfa Romeo All Brand Models (Direct ECU Label Lookup) (Read/Write PFLASH/ExtEEPROM, CheckSum) MARELLI 8GMF MPC5553 (test) Open Vehicle →
Fiat All Brand Models (Direct ECU Label Lookup) (Read/Write PFLASH/ExtEEPROM, CheckSum) MARELLI 8GMF MPC5553 (test) Open Vehicle →
Fiat All Brand Models (Direct ECU Label Lookup) (Read/Write PFLASH/ExtEEPROM, CheckSum) MARELLI 8F3 MPC5553 (test) Open Vehicle →
Lancia All Brand Models (Direct ECU Label Lookup) (Read/Write PFLASH/ExtEEPROM, CheckSum) MARELLI 8DF MPC5553 (test) Open Vehicle →
Universal ECU Protocol Protokol programmirovaniya so vskrytiem (Boot / BDM / JTAG / Renesas) (Direct Bench / Boot ECU Connector Pinout) MARELLI 8TDF MPC5553 (test) Open Vehicle →
Universal ECU Protocol Protokol programmirovaniya so vskrytiem (Boot / BDM / JTAG / Renesas) (Direct Bench / Boot ECU Connector Pinout) MARELLI 8GMF MPC5553 (test) Open Vehicle →
Universal ECU Protocol Protokol programmirovaniya so vskrytiem (Boot / BDM / JTAG / Renesas) (Direct Bench / Boot ECU Connector Pinout) MARELLI 8F3 MPC5553 (test) Open Vehicle →
Universal ECU Protocol Protokol programmirovaniya so vskrytiem (Boot / BDM / JTAG / Renesas) (Direct Bench / Boot ECU Connector Pinout) MARELLI 8DF MPC5553 (test) Open Vehicle →
