ECU Pinout MT60 Bench / Boot / GPT Pinout — Wiring Diagram

Step-by-step bench connection diagram for ECU MT60 (non-invasive Platform Bench & Boot Mode): T30/T15 power supply, twisted-pair CAN-H/CAN-L, and GPT0/GPT1 signal pinout.

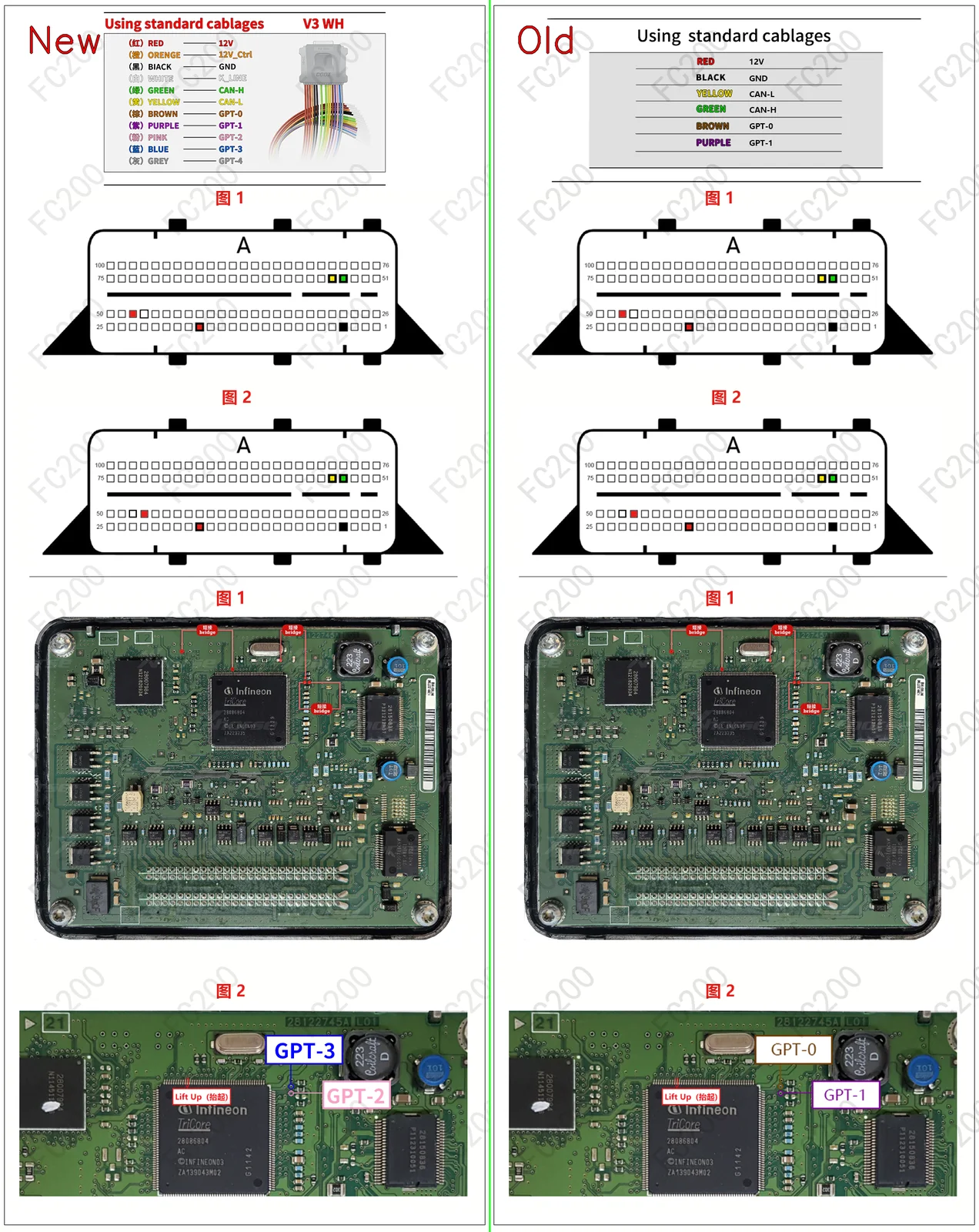

OFFICIAL PINOUT DIAGRAM: BOOT_DELPHI MT60.png (Boot)4,067,984 bytes
BOOT_DELPHI MT60.png
STEP-BY-STEP BENCH CONNECTION PROCEDURE (HOWTO PROTOCOL)BENCH / BOOT
  1. Step 1 (Terminal 30 & Terminal 15 Power): Apply regulated bench power 13.5V — 13.8V to constant battery (T30), switched ignition (T15), and ground (GND) pins according to the harness color code above.
  2. Step 2 (CAN Bus & GPT0 / GPT1 Signals): Connect CAN-H & CAN-L, along with signal leads GPT0 (S1) & GPT1 (S2) to enter bench service mode without opening the ECU housing.
  3. Step 3 (Full PFLASH + DFLASH Backup Read): Before writing any calibration, read and archive a full backup of internal Program Flash (PFLASH) and Data Flash / EEPROM (DFLASH).
VEHICLES EQUIPPED WITH ECU MT60 (15)VEHICLE COMPATIBILITY
MakeModel & EngineECU & MCUAction
Universal ECU Protocol Universalnyy protokol Bosch MPC5xx / Delphi MTxx / Continental Easy-U (Direct Bench / Boot ECU Connector Pinout) ChinaDelphi MT60.1 (MC9S12XEP768) Open Vehicle →
Chevrolet All Brand Models (Universal ECU Protocol) (All Engine Variants with This ECU) DELPHI MT60 (TC1766) Open Vehicle →
Daewoo Gentra (1500 • 105) DELPHI MT60 (TC1766) Open Vehicle →
Daewoo Gentra(T300) (1.5 16v 106) DELPHI MT60 (TC1766) Open Vehicle →
JAC J2 (1400 CNKA 81) DELPHI MT60 (TC1766) Open Vehicle →
JAC J3 (1400 CNKA 81) DELPHI MT60 (TC1766) Open Vehicle →
JAC J5 (1500 • ) DELPHI MT60 (TC1766) Open Vehicle →
Chevrolet All Brand Models (Direct ECU Label Lookup) (Read/WriteDFLASH/PFLASH) DELPHI MT60 (TC1766) Open Vehicle →
Daewoo All Brand Models (Direct ECU Label Lookup) (Read/Write DFLASH/PFLASH) DELPHI MT60 (TC1766) Open Vehicle →
JAC All Brand Models (Direct ECU Label Lookup) (Read/Write DFLASH/PFLASH) DELPHI MT60 (TC1766) Open Vehicle →
Universal ECU Protocol Protokol programmirovaniya so vskrytiem (Boot / BDM / JTAG / Renesas) (Direct Bench / Boot ECU Connector Pinout) DELPHI MT60 (TC1766) Open Vehicle →
Buick All Brand Models (Universal ECU Protocol) (All Engine Variants with This ECU) ChinaDelphi MT60.1 (MC9S12XEP768) Open Vehicle →
WuLing All Models with Delphi System (Universal Protocol) (All Engine Variants with This ECU) ChinaDelphi MT60.1 (MC9S12XEP768) Open Vehicle →
Buick All Brand Models (Direct ECU Label Lookup) (Read/Write PFLASH) ChinaDelphi MT60.1 (MC9S12XEP768) Open Vehicle →
WuLing All Brand Models (Direct ECU Label Lookup) (Read/Write PFLASH) ChinaDelphi MT60.1 (MC9S12XEP768) Open Vehicle →
