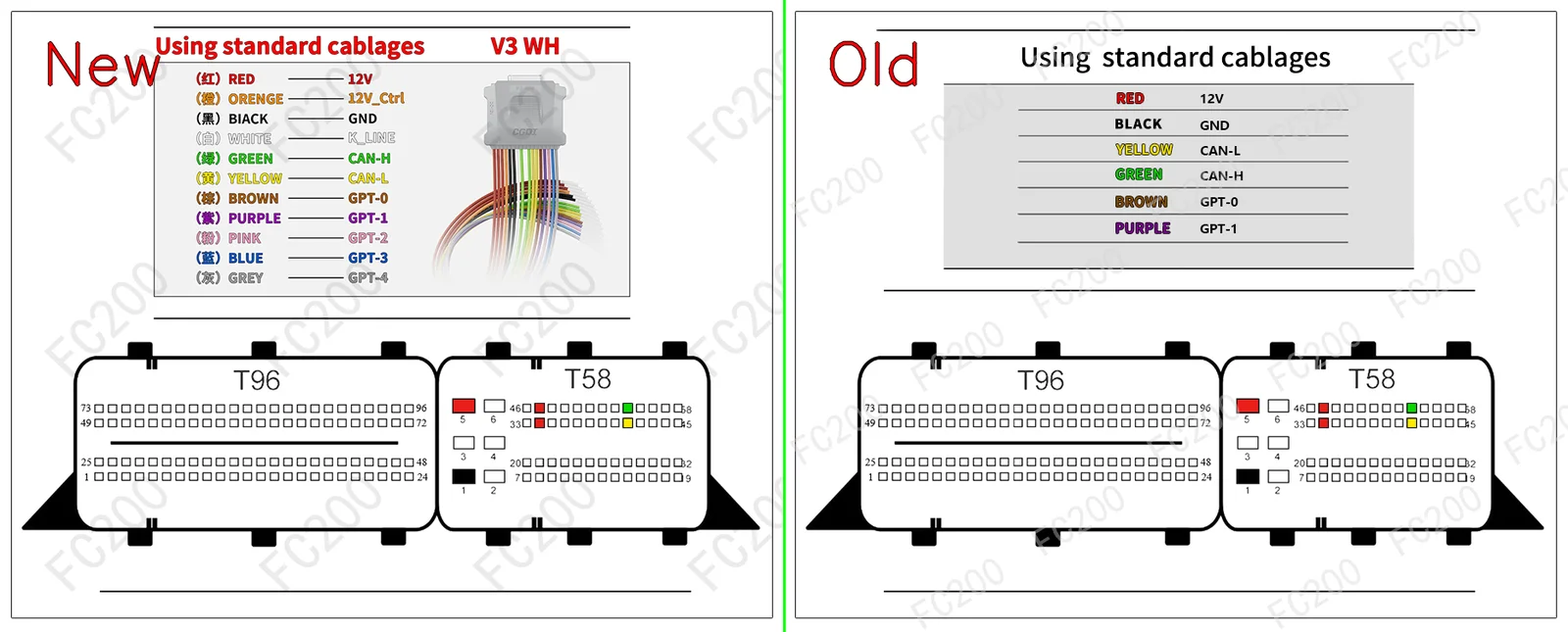

OEM PINOUT DIAGRAM: SDI6.png (Platform / Bench)521,387 bytes

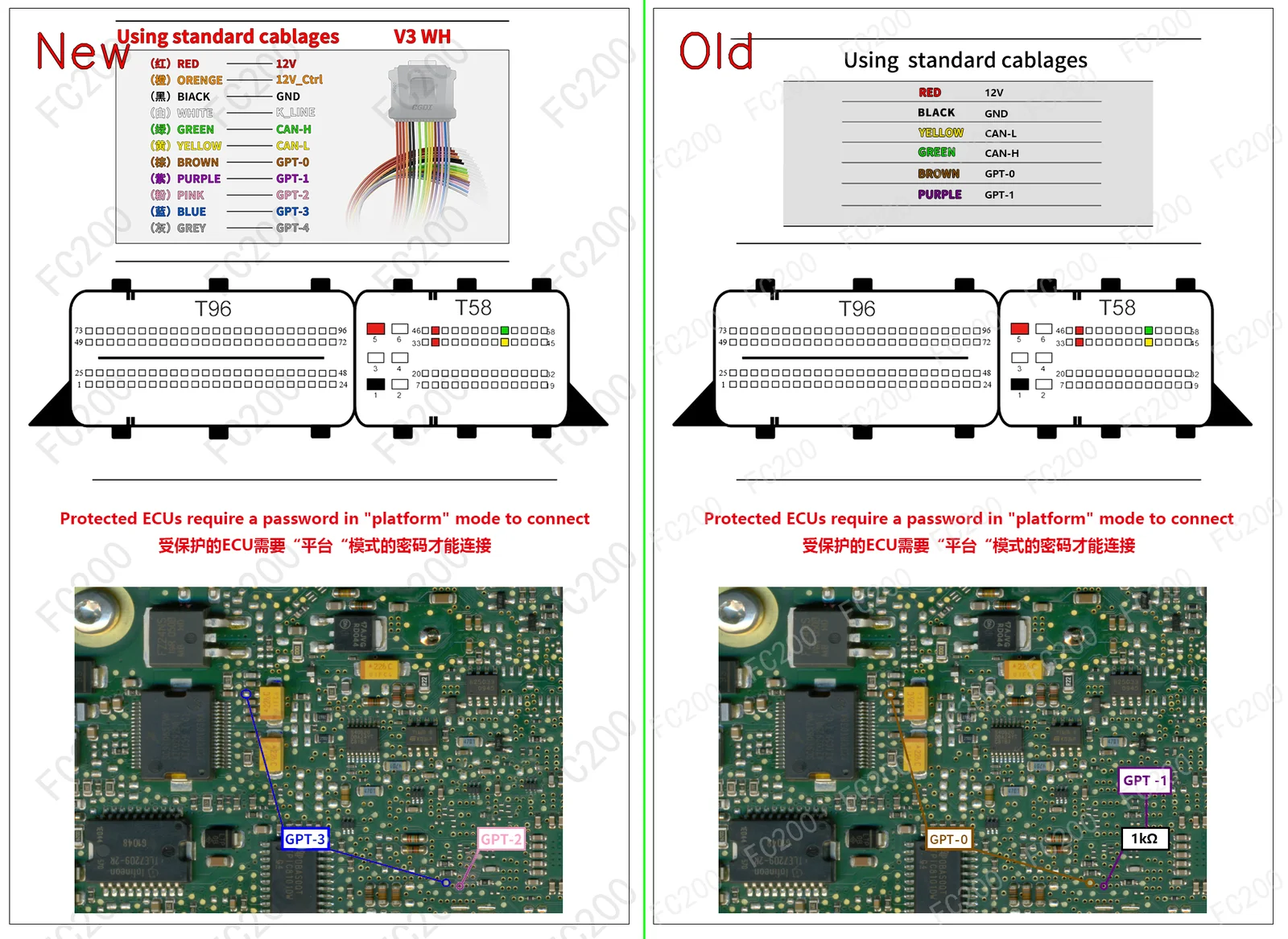

OEM PINOUT DIAGRAM: SDI6_BOOT.png (Boot)2,131,396 bytes
STEP-BY-STEP BENCH CONNECTION PROTOCOL (HOWTO)BENCH / BOOT
- Step 1 (Terminal 30 & Terminal 15 power): Apply stabilized
13.5V — 13.8Vto the permanent power (T30) and ignition (T15) pins, plus ground (GND), following the cable color coding above. - Step 2 (CAN bus & GPT0 / GPT1 generator lines): Connect the
CAN-HandCAN-L, plus the signal wiresGPT0 (S1)andGPT1 (S2)to enter service mode without opening the ECU case. - Step 3 (Full PFLASH + DFLASH backup read): Before any write operation, read and save a full backup of the internal flash (
PFLASH) and the EEPROM area (DFLASH).
VEHICLES FITTED WITH THE SDI6 ECU (10)FITMENT
| Brand | Model & Engine | ECU & MCU | Open |
|---|---|---|---|
| Porsche | Cayenne(958) (4800 S M48.02 400) | CONTINENTAL SDI6.1 (TC1796) |
Open vehicle → |
| Porsche | Cayenne(958) (4800 Turbo M48.52 500) | CONTINENTAL SDI6.1 (TC1796) |
Open vehicle → |
| Porsche | Cayenne(958) (4800 Turbo S M48.52 540) | CONTINENTAL SDI6.1 (TC1796) |
Open vehicle → |
| Porsche | Panamera(970) (4800 S M48.20 400) | CONTINENTAL SDI6.1 (TC1796) |
Open vehicle → |
| Porsche | Panamera(970) (4800 4S M48.40 400) | CONTINENTAL SDI6.1 (TC1796) |
Open vehicle → |
| Porsche | Panamera(970) (4800 Turbo M48.70 500) | CONTINENTAL SDI6.1 (TC1796) |
Open vehicle → |
| Porsche | Panamera(970) (4800 Turbo S M48.70 550) | CONTINENTAL SDI6.1 (TC1796) |
Open vehicle → |
| Porsche | Panamera(970) (4800 GTS MCX.RA 440) | CONTINENTAL SDI6.1 (TC1796) |
Open vehicle → |
| Porsche | Panamera(970) (4800 GTS MCX.PA 440) | CONTINENTAL SDI6.1 (TC1796) |
Open vehicle → |
| Porsche | All Models (Direct ECU Connection) (Read/Write PFLASH/ExtEEPROM, CheckSum) | CONTINENTAL SDI6.1 (TC1796) |
Open vehicle → |
