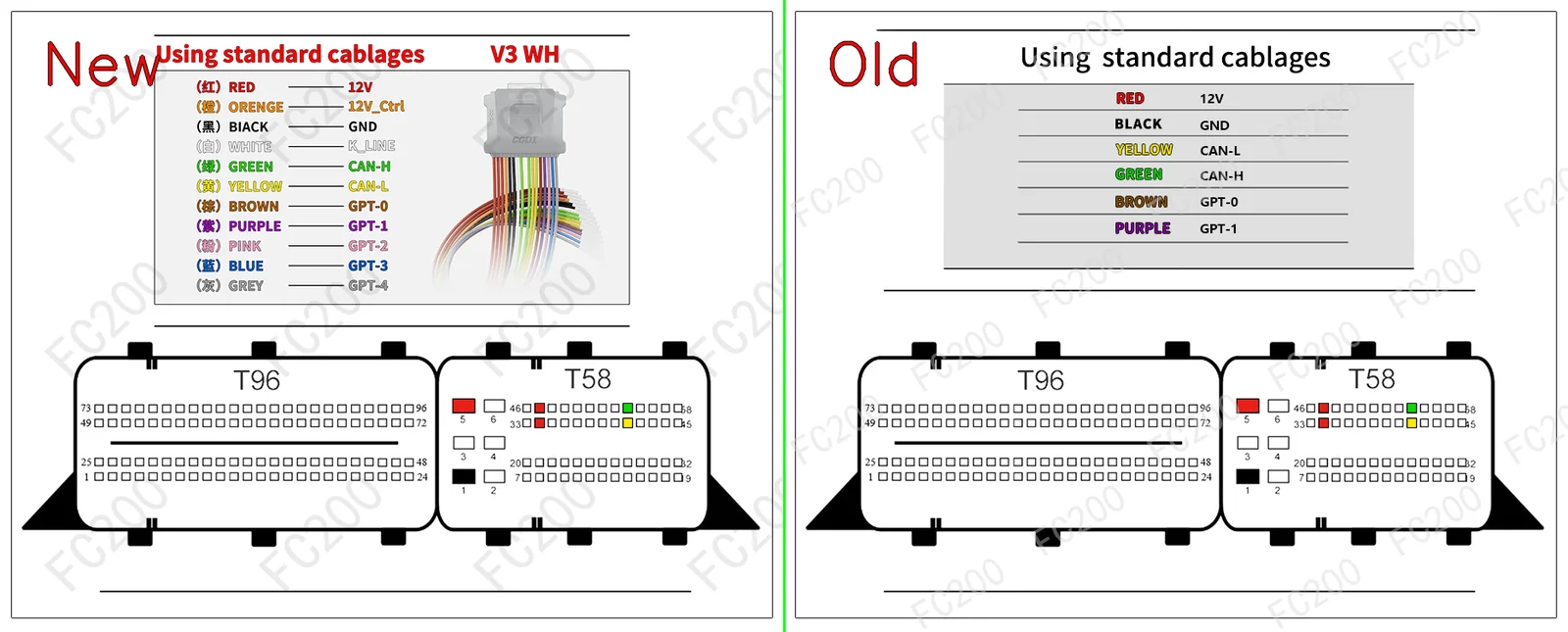

OFFICIAL PINOUT DIAGRAM: SDI7.png (Platform / Bench)520,671 bytes

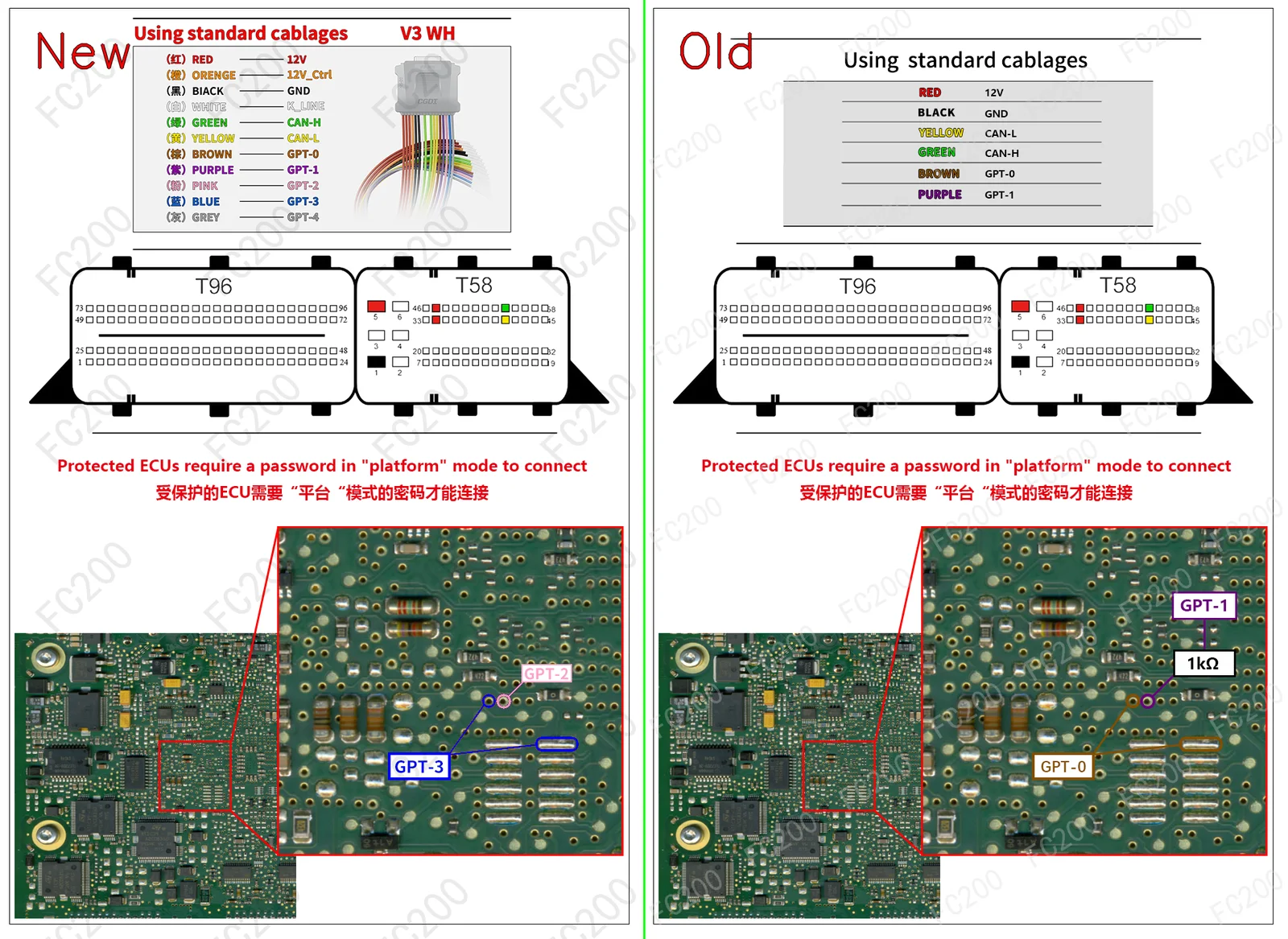

OFFICIAL PINOUT DIAGRAM: SDI7_BOOT.png (Boot)2,358,014 bytes
STEP-BY-STEP BENCH CONNECTION PROCEDURE (HOWTO PROTOCOL)BENCH / BOOT
- Step 1 (Terminal 30 & Terminal 15 Power): Apply regulated bench power
13.5V — 13.8Vto constant battery (T30), switched ignition (T15), and ground (GND) pins according to the harness color code above. - Step 2 (CAN Bus & GPT0 / GPT1 Signals): Connect
CAN-H&CAN-L, along with signal leadsGPT0 (S1)&GPT1 (S2)to enter bench service mode without opening the ECU housing. - Step 3 (Full PFLASH + DFLASH Backup Read): Before writing any calibration, read and archive a full backup of internal Program Flash (
PFLASH) and Data Flash / EEPROM (DFLASH).
VEHICLES EQUIPPED WITH ECU SDI7 (7)VEHICLE COMPATIBILITY
| Make | Model & Engine | ECU & MCU | Action |
|---|---|---|---|
| Porsche | Cayenne(92A) (4800 S M48.02 400) | CONTINENTAL SDI7 (TC1796) |
Open Vehicle → |
| Porsche | Cayenne(92A) (4800 GTS M48.02 420) | CONTINENTAL SDI7 (TC1796) |
Open Vehicle → |
| Porsche | Cayenne(958) (4800 GTS M48.02 400) | CONTINENTAL SDI7 (TC1796) |
Open Vehicle → |
| Porsche | Panamera(970) (3000 S 4 Executive MCW.DA 420) | CONTINENTAL SDI7 (TC1796) |
Open Vehicle → |
| Porsche | Panamera(970) (3000 S MCW.DA 420) | CONTINENTAL SDI7 (TC1796) |
Open Vehicle → |
| Porsche | Panamera(970) (3000 4S MCW.DA 420) | CONTINENTAL SDI7 (TC1796) |
Open Vehicle → |
| Porsche | All Brand Models (Direct ECU Label Lookup) (Read/Write PFLASH/ExtEEPROM, CheckSum) | CONTINENTAL SDI7 (TC1796) |
Open Vehicle → |
