ECU Pinout SIM2K-241_ECU Bench / Boot / GPT Pinout — Wiring Diagram

Step-by-step bench connection diagram for ECU SIM2K-241_ECU (non-invasive Platform Bench & Boot Mode): T30/T15 power supply, twisted-pair CAN-H/CAN-L, and GPT0/GPT1 signal pinout.

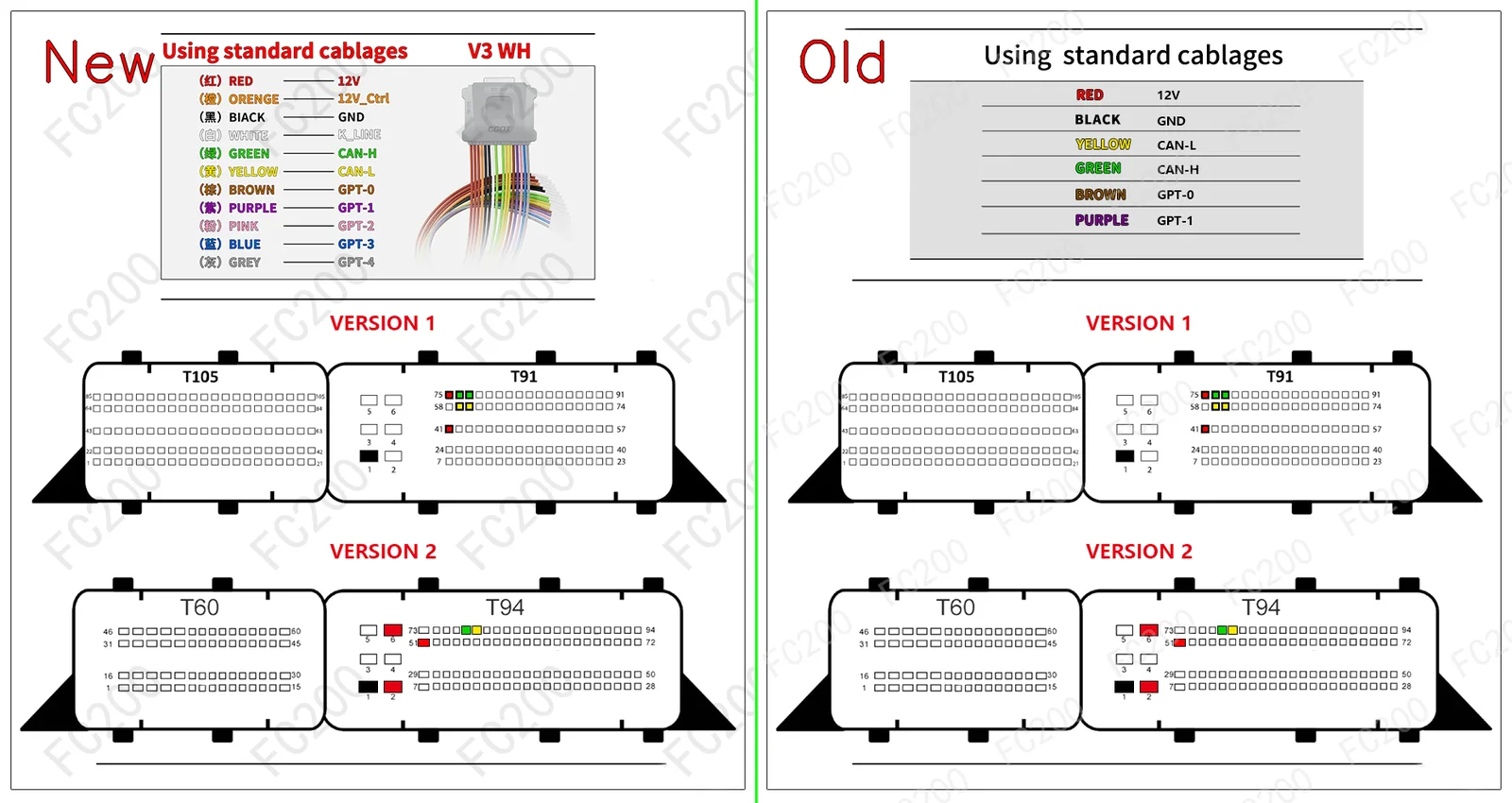

OFFICIAL PINOUT DIAGRAM: SIM2K_241_ECU.png (Platform / Bench)701,282 bytes
OFFICIAL PINOUT DIAGRAM: SIM2K_241_ECU_BOOT.png (Boot)4,615,151 bytes
STEP-BY-STEP BENCH CONNECTION PROCEDURE (HOWTO PROTOCOL)BENCH / BOOT
  1. Step 1 (Terminal 30 & Terminal 15 Power): Apply regulated bench power 13.5V — 13.8V to constant battery (T30), switched ignition (T15), and ground (GND) pins according to the harness color code above.
  2. Step 2 (CAN Bus & GPT0 / GPT1 Signals): Connect CAN-H & CAN-L, along with signal leads GPT0 (S1) & GPT1 (S2) to enter bench service mode without opening the ECU housing.
  3. Step 3 (Full PFLASH + DFLASH Backup Read): Before writing any calibration, read and archive a full backup of internal Program Flash (PFLASH) and Data Flash / EEPROM (DFLASH).
VEHICLES EQUIPPED WITH ECU SIM2K-241_ECU (11)VEHICLE COMPATIBILITY
MakeModel & EngineECU & MCUAction
Hyundai Avante(MD) (1800 G4NB 150) CONTINENTAL SIM2K_241_ECU (TC1767) Open Vehicle →
Hyundai Elantra(MD) (1800 G4NB 150) CONTINENTAL SIM2K_241_ECU (TC1767) Open Vehicle →
Hyundai ElantraUD (1836 G4NB EK328561 147) CONTINENTAL SIM2K_241_ECU (TC1767) Open Vehicle →
Hyundai Neo Fludic Elantra(MD) (1800 G4NB 150) CONTINENTAL SIM2K_241_ECU (TC1767) Open Vehicle →
Hyundai Sonata(YF) (1800 G4NB 150) CONTINENTAL SIM2K_241_ECU (TC1767) Open Vehicle →
Hyundai i45(YF) (1800 G4NB 150) CONTINENTAL SIM2K_241_ECU (TC1767) Open Vehicle →
Hyundai iX35(MD) (1800 G4NB 150) CONTINENTAL SIM2K_241_ECU (TC1767) Open Vehicle →
Kia Sportage(SL) (-- • ) CONTINENTAL SIM2K_241_ECU (TC1767) Open Vehicle →
FAW / Jiefang / Xichai All Brand Models (Direct ECU Label Lookup) (Read/Write DFLASH/PFLASH) CONTINENTAL SIM2K_241_ECU (TC1767) Open Vehicle →
Hyundai All Brand Models (Direct ECU Label Lookup) (Read/Write DFLASH/PFLASH, Read Password, CheckSum) CONTINENTAL SIM2K_241_ECU (TC1767) Open Vehicle →
Kia All Brand Models (Direct ECU Label Lookup) (Read/Write DFLASH/PFLASH, Read Password, CheckSum) CONTINENTAL SIM2K_241_ECU (TC1767) Open Vehicle →
