ECU Pinout SIMOS12.2 Bench / Boot / GPT Pinout — Wiring Diagram

Step-by-step bench connection diagram for ECU SIMOS12.2 (non-invasive Platform Bench & Boot Mode): T30/T15 power supply, twisted-pair CAN-H/CAN-L, and GPT0/GPT1 signal pinout.

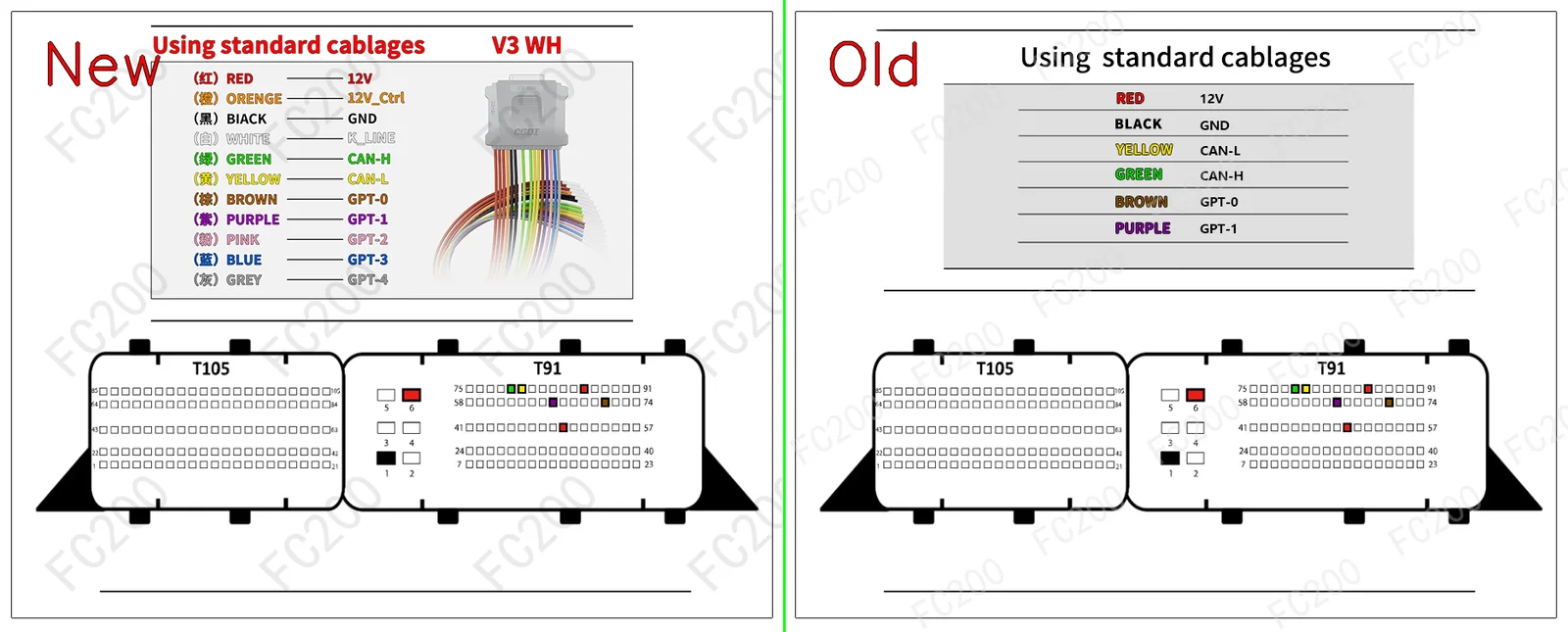

OFFICIAL PINOUT DIAGRAM: SIMOS12.2.png (Platform / Bench)521,542 bytes
OFFICIAL PINOUT DIAGRAM: SIMOS12.2_BOOT.png (Boot)3,603,612 bytes
STEP-BY-STEP BENCH CONNECTION PROCEDURE (HOWTO PROTOCOL)BENCH / BOOT
  1. Step 1 (Terminal 30 & Terminal 15 Power): Apply regulated bench power 13.5V — 13.8V to constant battery (T30), switched ignition (T15), and ground (GND) pins according to the harness color code above.
  2. Step 2 (CAN Bus & GPT0 / GPT1 Signals): Connect CAN-H & CAN-L, along with signal leads GPT0 (S1) & GPT1 (S2) to enter bench service mode without opening the ECU housing.
  3. Step 3 (Full PFLASH + DFLASH Backup Read): Before writing any calibration, read and archive a full backup of internal Program Flash (PFLASH) and Data Flash / EEPROM (DFLASH).
VEHICLES EQUIPPED WITH ECU SIMOS12.2 (15)VEHICLE COMPATIBILITY
MakeModel & EngineECU & MCUAction
Audi A3(8V) (1798 CJSB 180) CONTINENTAL SIMOS12.2 (TC1797) Open Vehicle →
Audi TT(8J) (1800 FSI CJSA 180) CONTINENTAL SIMOS12.2 (TC1797) Open Vehicle →
Audi TT(FV) (1798 CJSB 180) CONTINENTAL SIMOS12.2 (TC1797) Open Vehicle →
Seat Leon(5F) (1798 CJSA 180) CONTINENTAL SIMOS12.2 (TC1797) Open Vehicle →
Seat Leon(5F) (1800 TSI CJSB 180) CONTINENTAL SIMOS12.2 (TC1797) Open Vehicle →
Skoda Superb(3V) (1798 CJSA 180) CONTINENTAL SIMOS12.2 (TC1797) Open Vehicle →
Volkswagen (VW) Beetle /Beetle Cabriolet5C2 - 5C8 (1984 CESA 211) CONTINENTAL SIMOS12.2 (TC1797) Open Vehicle →
Volkswagen (VW) Golf5G1 (1800 TSI CJSB 180) CONTINENTAL SIMOS12.2 (TC1797) Open Vehicle →
Volkswagen (VW) Jetta(VII) (1800 TSI CJSB 180) CONTINENTAL SIMOS12.2 (TC1797) Open Vehicle →
Volkswagen (VW) Magotan(B9) (1800 T CJSC 180) CONTINENTAL SIMOS12.2 (TC1797) Open Vehicle →
Volkswagen (VW) Magotan(B9) (1800 T CJSA 180) CONTINENTAL SIMOS12.2 (TC1797) Open Vehicle →
Audi All Brand Models (Direct ECU Label Lookup) (Read/Write DFLASH/PFLASH, CheckSum) CONTINENTAL SIMOS12.2 (TC1797) Open Vehicle →
Seat All Brand Models (Direct ECU Label Lookup) (Read/Write DFLASH/PFLASH, CheckSum) CONTINENTAL SIMOS12.2 (TC1797) Open Vehicle →
Skoda All Brand Models (Direct ECU Label Lookup) (Read/Write DFLASH/PFLASH, CheckSum) CONTINENTAL SIMOS12.2 (TC1797) Open Vehicle →
Volkswagen (VW) All Brand Models (Direct ECU Label Lookup) (Read/Write DFLASH/PFLASH, CheckSum) CONTINENTAL SIMOS12.2 (TC1797) Open Vehicle →
