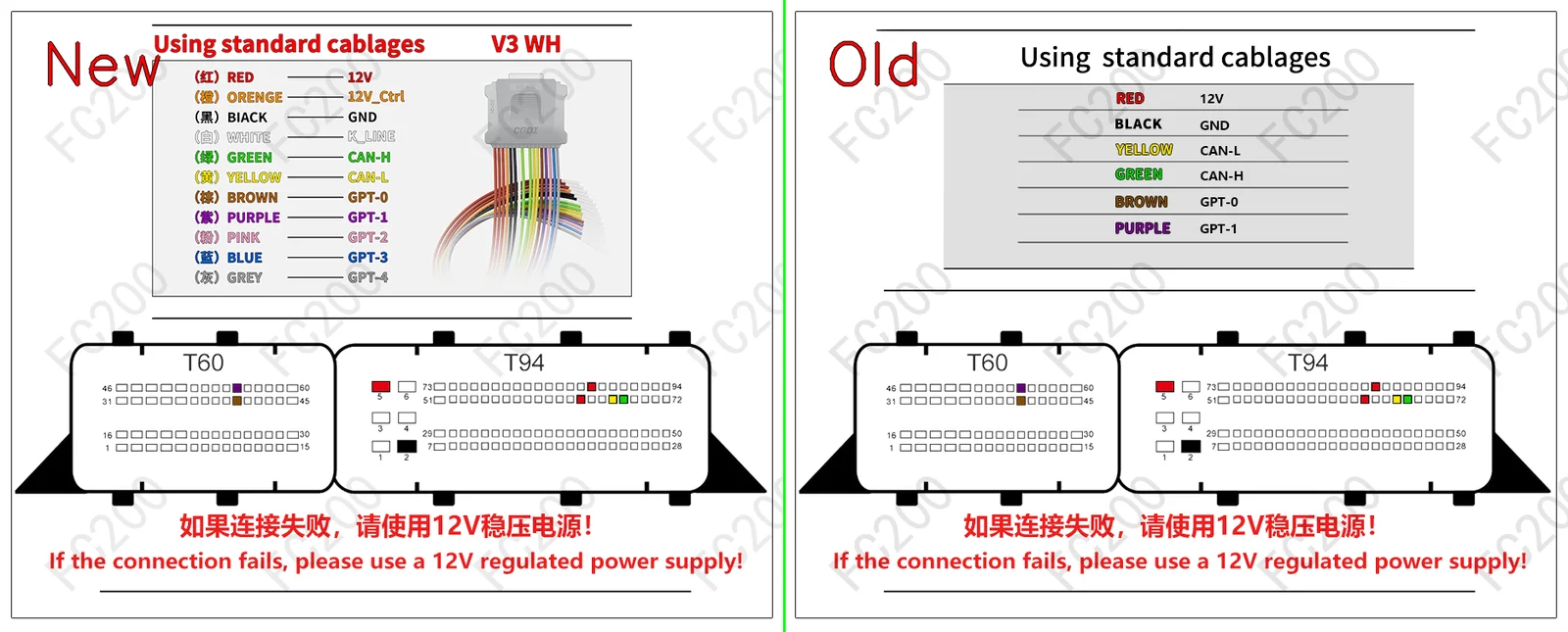

OFFICIAL PINOUT DIAGRAM: SIMOS8.6.png (Platform / Bench)559,351 bytes

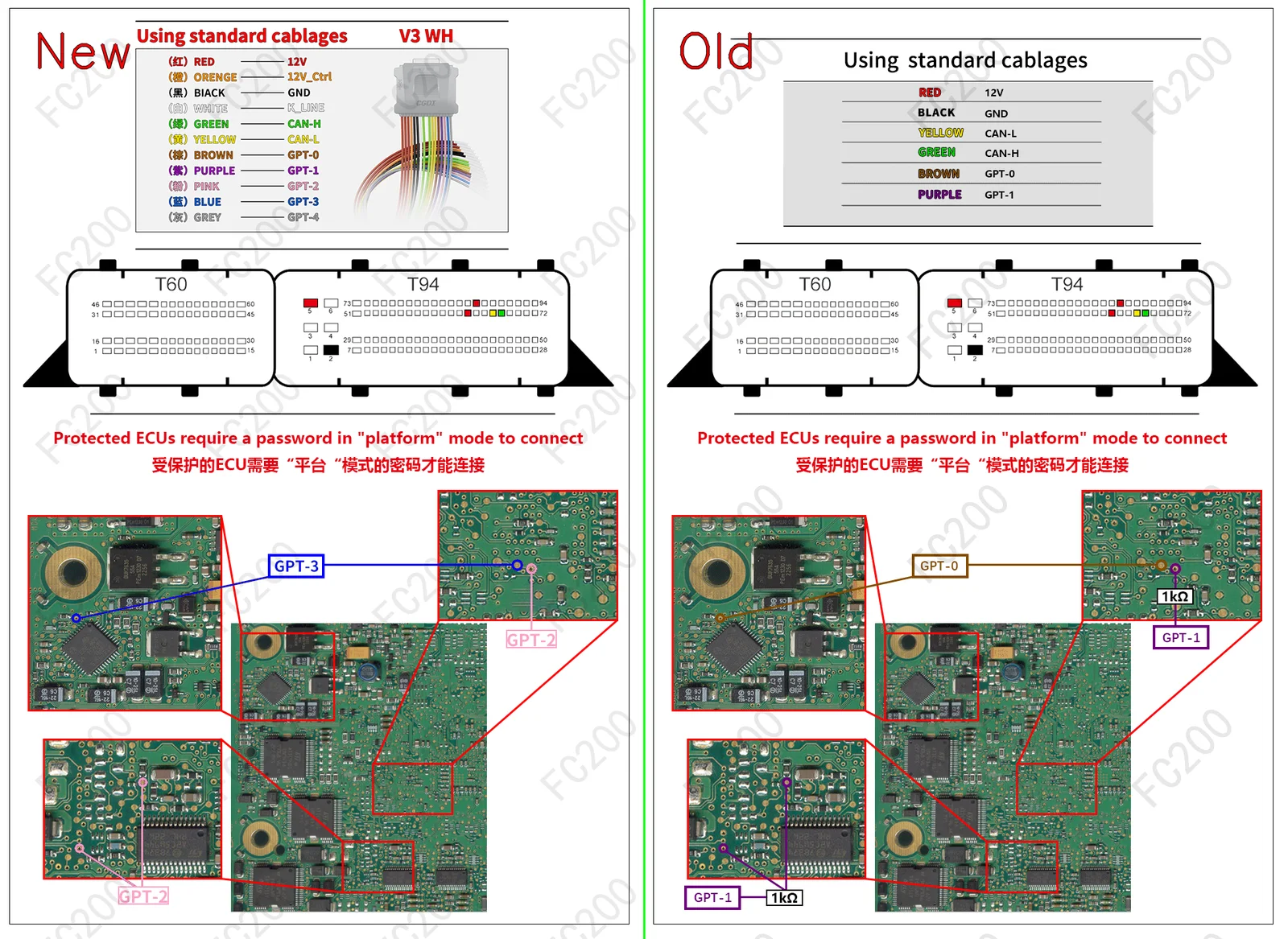

OFFICIAL PINOUT DIAGRAM: SIMOS8.6_BOOT.png (Boot)2,311,403 bytes
STEP-BY-STEP BENCH CONNECTION PROCEDURE (HOWTO PROTOCOL)BENCH / BOOT
- Step 1 (Terminal 30 & Terminal 15 Power): Apply regulated bench power
13.5V — 13.8Vto constant battery (T30), switched ignition (T15), and ground (GND) pins according to the harness color code above. - Step 2 (CAN Bus & GPT0 / GPT1 Signals): Connect
CAN-H&CAN-L, along with signal leadsGPT0 (S1)&GPT1 (S2)to enter bench service mode without opening the ECU housing. - Step 3 (Full PFLASH + DFLASH Backup Read): Before writing any calibration, read and archive a full backup of internal Program Flash (
PFLASH) and Data Flash / EEPROM (DFLASH).
VEHICLES EQUIPPED WITH ECU SIMOS8.6 (2)VEHICLE COMPATIBILITY
| Make | Model & Engine | ECU & MCU | Action |
|---|---|---|---|
| Audi | A7C7 (2800 FSI CHVA 204) | CONTINENTAL SIMOS8.6 (TC1796) |
Open Vehicle → |
| Audi | All Brand Models (Direct ECU Label Lookup) (Read/Write EEPROM/DFLASH/MAPS) | CONTINENTAL SIMOS8.6 (TC1796) |
Open Vehicle → |
