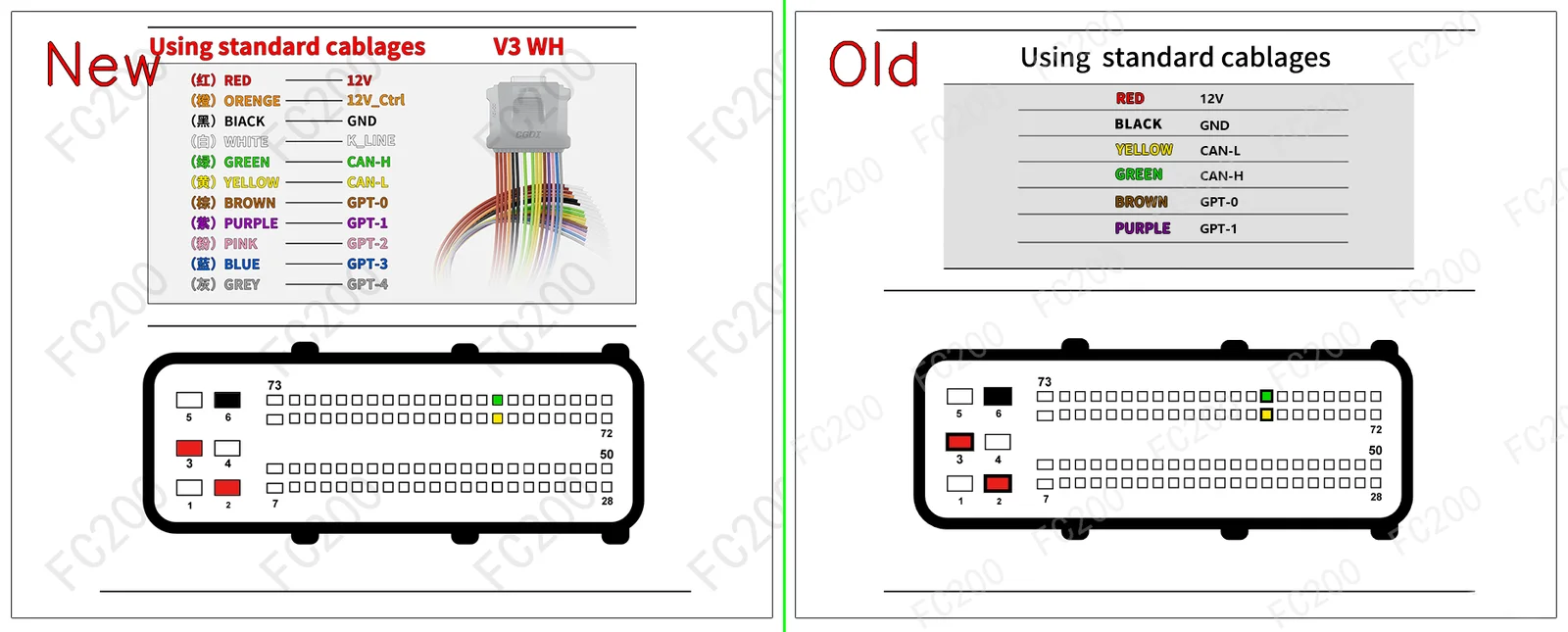

OFFICIAL PINOUT DIAGRAM: BOSCH TC60.x.x.png (Platform / Bench)442,807 bytes
STEP-BY-STEP BENCH CONNECTION PROCEDURE (HOWTO PROTOCOL)BENCH / BOOT
- Step 1 (Terminal 30 & Terminal 15 Power): Apply regulated bench power
13.5V — 13.8Vto constant battery (T30), switched ignition (T15), and ground (GND) pins according to the harness color code above. - Step 2 (CAN Bus & GPT0 / GPT1 Signals): Connect
CAN-H&CAN-L, along with signal leadsGPT0 (S1)&GPT1 (S2)to enter bench service mode without opening the ECU housing. - Step 3 (Full PFLASH + DFLASH Backup Read): Before writing any calibration, read and archive a full backup of internal Program Flash (
PFLASH) and Data Flash / EEPROM (DFLASH).
VEHICLES EQUIPPED WITH ECU TC60.X.X (10)VEHICLE COMPATIBILITY
| Make | Model & Engine | ECU & MCU | Action |
|---|---|---|---|
| Hyundai | I30(FD) (1.6 16v CRDi 90 D4FB 90) | BOSCH TC60.x.x (SH725xx) |
Open Vehicle → |
| Hyundai | I30(FD) (1600 G4F 127) | BOSCH TC60.x.x (SH725xx) |
Open Vehicle → |
| Hyundai | I30(GD) (1592 D4FB 128) | BOSCH TC60.x.x (SH725xx) |
Open Vehicle → |
| Hyundai | I30(FD) (1592 D4FB 116) | BOSCH TC60.x.x (SH725xx) |
Open Vehicle → |
| Hyundai | I30(GD) (1592 D4FB 136) | BOSCH TC60.x.x (SH725xx) |
Open Vehicle → |
| Hyundai | I30(GD) (1592 D4FB 111) | BOSCH TC60.x.x (SH725xx) |
Open Vehicle → |
| Hyundai | i30(GD) (1600 GDI 7 Speed DCT Ecoshift 135) | BOSCH TC60.x.x (SH725xx) |
Open Vehicle → |
| Kia | Sportage (1.6 16v GDI G4FD 136) | BOSCH TC60.x.x (SH725xx) |
Open Vehicle → |
| Hyundai | All Brand Models (Direct ECU Label Lookup) (Read/Write EEPROM/Maps, Backup Data) | BOSCH TC60.x.x (SH725xx) |
Open Vehicle → |
| Kia | All Brand Models (Direct ECU Label Lookup) (Read/Write EEPROM/Maps, Backup Data) | BOSCH TC60.x.x (SH725xx) |
Open Vehicle → |
